LED Channel Sign Module

LED Channel Sign Module

LED illumination system for front-lit, back-lit channel letters
and also indoor & outdoor decorations.
it has 160 degree wide beam angle and uniformed lighting distribution
so that it can be applied to the smaller depth channel letters and boxes like 40~150mm.
White(6500K), Red, Green, Blue color are available.
it provides many advantages like the brilliant light output, energy cost saving
and maintenance cost reduction.
Hyundai LED is the producer.


General Specifications

High Efficiency(100 lm/W)
Wide Beam : Angle 160 degree
Good for smaller depth boxe like 40~150mm
Pitch Size : 150 mm(H-LED333), 200 mm(H-LED666)
Life time : More than 50,000 hrs at L70
100% waterproof: IP67 Certification
Forward Voltage: 12VDC
5 years warranty
Seoul Semiconductor's LED applied

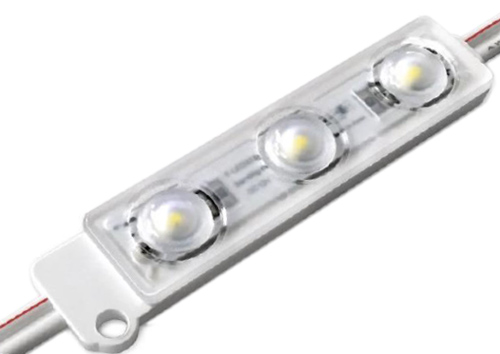

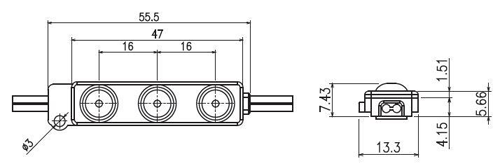

H-LED 333

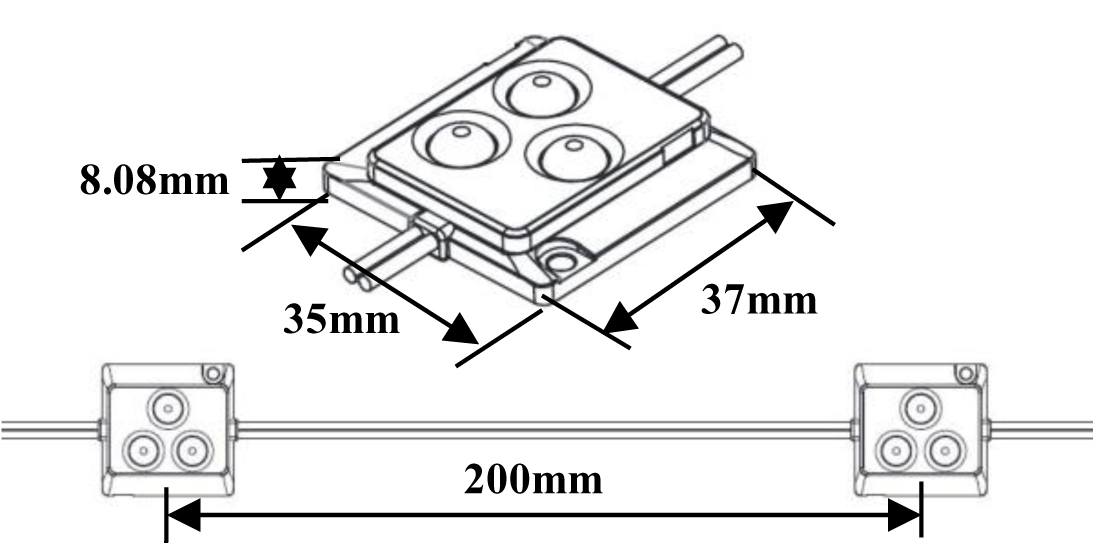

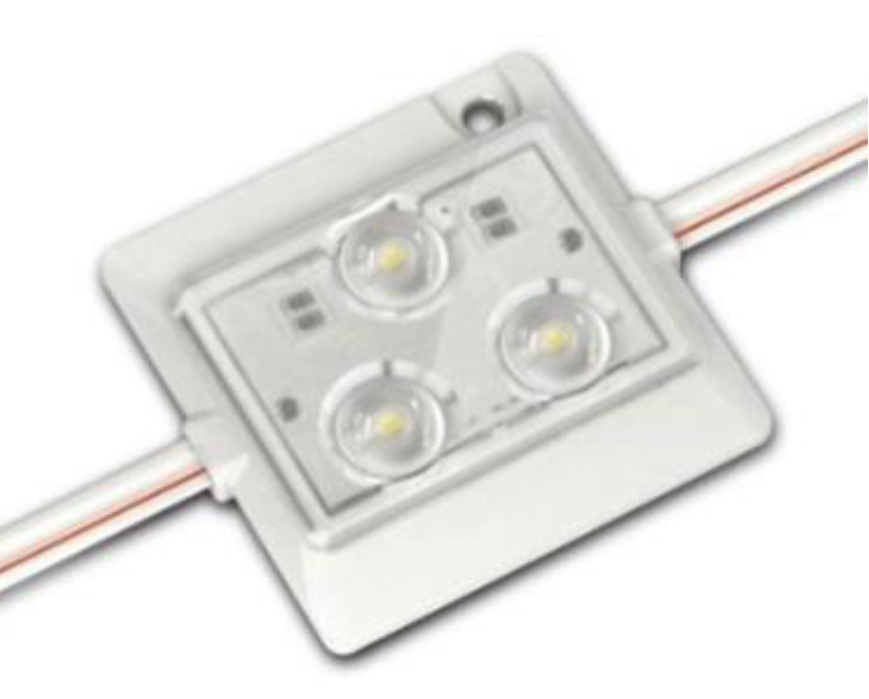

H-LED 666

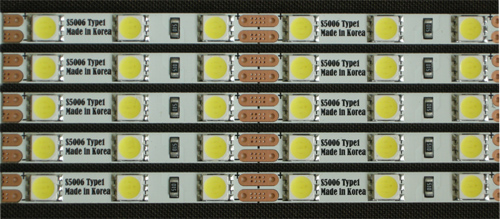

Line Bar Type Module

Line Bar module also has CE certificate.
There is the temperature transfering tape under the PCB. The forward voltge is 12 Volt.
The length of module is 500mm, You can cut the block unit by 50mm.
